DJI FPV Part 05 Air Unit Antenna (SMA)

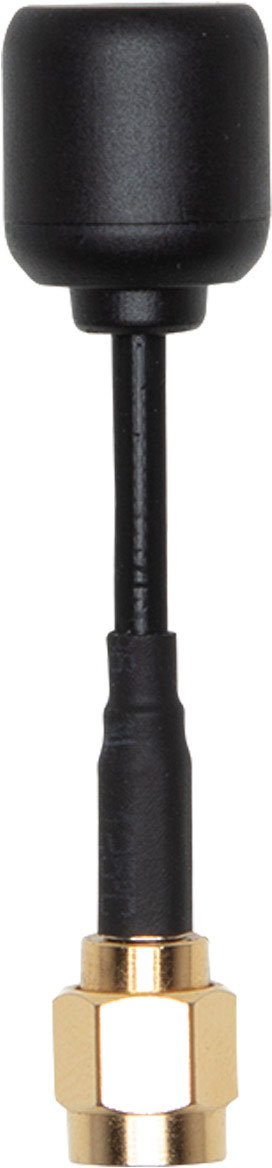

DJI FPV Air Unit Antenna (SMA)
LHCP antenna, long-distance transmission, strong anti-interference ability, SMA joint, small size, and light weight.
Technical Info
- VSWR<2 frequency range: 5.4GHz-6GHz, 2 dB gain and 3dB axial ratio beamwidth at 5.8GHz
- Size: 12.7 × 12.7 × 55 mm
- Weight: 6 g
- Suitable for: DJI FPV Air Unit
Tips
- Please note that it has an RP-SMA Plug.
- Keep the antennas of the air unit at least 40 mm apart.
- Keep the air unit away from metal objects or carbon fiber frames. Make sure to choose a position where the transmission will not be blocked during flight.
In the box

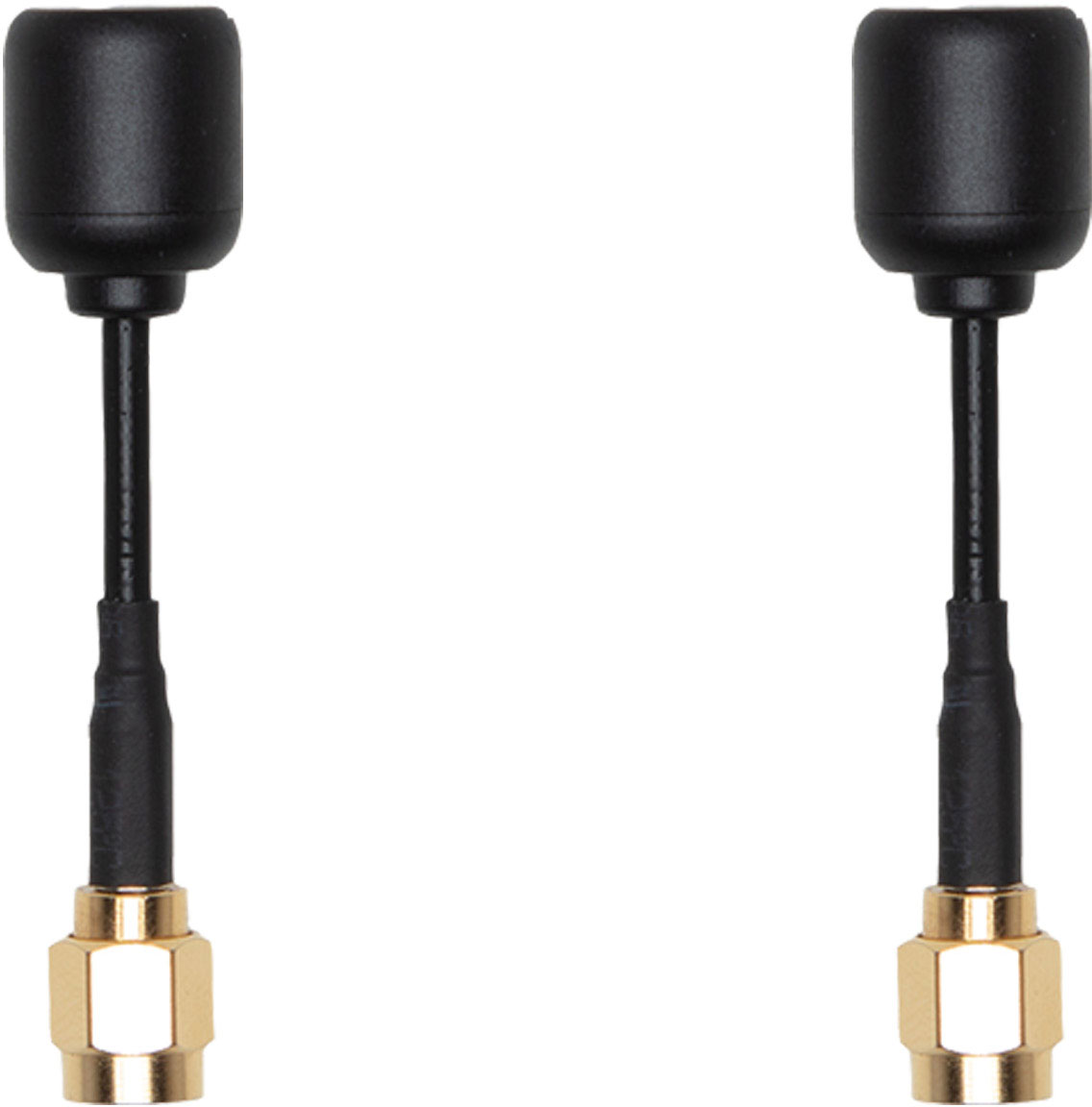

- DJI FPV Air Unit Antenna (SMA) × 2
Product code
11203
EAN
6958265190421
Brand
DJI
Product type
DJI FPV Antenna
Warranty
2 year
Dimensions (LxWxH)
12.7 x 12.7 x 55 mm
Weight
0.006 kg
